The Victory range of pedal boxes from OBP are universal fitting and have been proven in motorsport and are suited for either road or track use where a biased braking system is required. Brake adjustments are made via the included balance bar which allows the braking effort to be altered from the front to rear of the car to suit differing driving styles or road / track conditions.

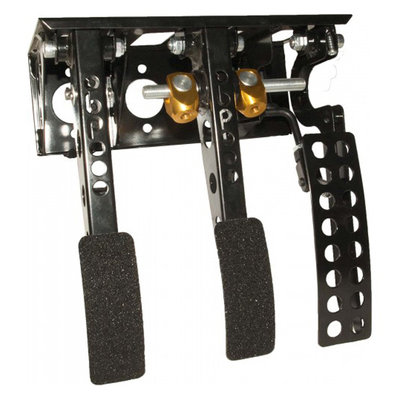

This top mounted pedal box features accelerator, brake and hydraulic clutch pedals and has a lightweight steel construction. All 3 pedals pivot on oil impregnated bushes to give very smooth maintenance free operation.

Forward facing (bulkhead mount) master cylinders

Pedal ratio 5:1

Available in 3 options

Bronze : Includes balance bar

Silver : Includes balance bar, 3 x Master cylinders, 3 x fluid reservoirs, Reservoir bracket, Remote adjuster and mounting hardware.

Gold : Includes balance bar, 3 x Master cylinders, 3 x fluid reservoirs, Reservoir bracket, 3 x Reservoir feed hoses, Remote adjuster and mounting hardware.

Dimensions -

Width 260mm, Pedal Height 280mm, Box Depth 140mm, Depth Including Master Cylinders 250mm.

Weight (Bronze kit) : 2.6kg (5.8lb)
